Ingersoll Rand YH65/YH70 T38/T45 580mm JD800 Shank Adapte

Description:

The shank adapters are manufactured from specially selected alloy steels followed by heat treatment through carburizing which withstands the high impact power of drilling .

There's a multitude of drilling rigs on the market today.Each use differt rock drills.That's why we offer a comprehensive range of shank adapters to mach different rock drills.

Rock drill brand: Atlas Copco, Tamrock, Ingersoll Rand, Boart Longyear, Furukawa, Montabert, Soonsan, Everdigm, others.

Thread size: R25, R28, R32, R38, T38, T45, T51, ST58, ST68, GT60.

Shank adapters are designed to with stand the high impact power of modern rock drill and made from specially selected material. It is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Tam rock series drifters, Garden Diver series drifters etc.

Competitive Advantage

• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
• The accurate dimension of thread perfectly matches the rock drill
• Work reliably and very cost-effective

Applications

• Bolting, drifting
• Bench drilling
• Production drilling

Furukawa Shank Adapter Specification

shank adapter | adaptador de la espiga | adaptador de cabo | Adaptateur à tige | Schaft -Adapter |

sap adaptörü | per gambo | sovituskantaan | nackadapter | nakkeadapteren | adapter cholewka |

Production Process:

1. Raw material

2. CNC milling and proprietary heat treatment process

3. Inspection

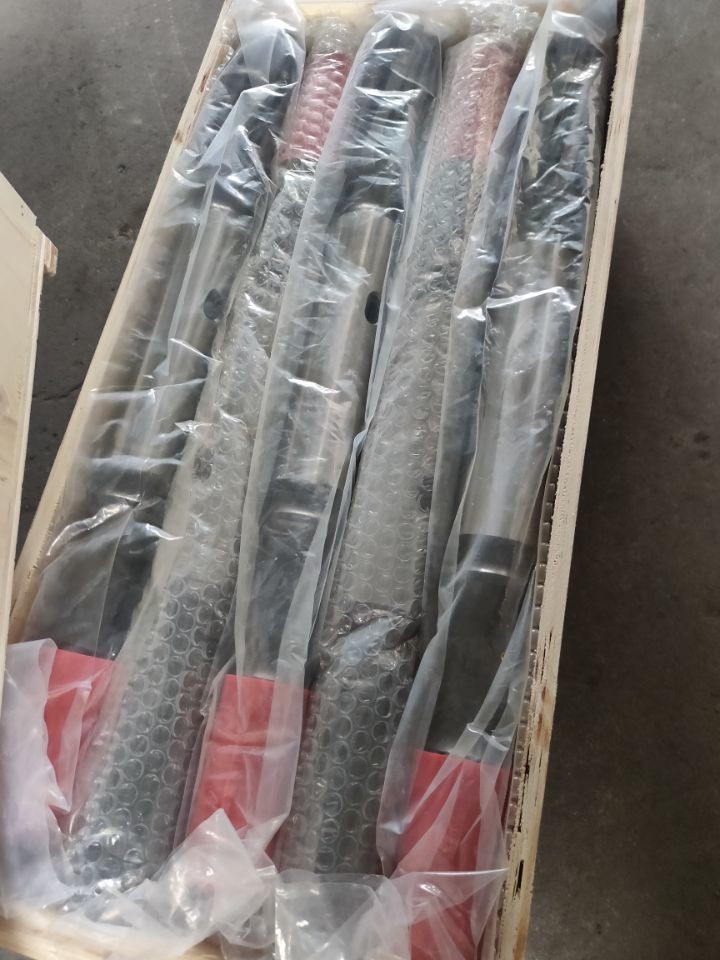

4. Package.

Competitive Advantage:
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.

Two flushing options of shank adapters: internal or external
— Internal flushing uses a water tube that fits through the center of the drill and into an o-ring seal in the end of the shank, to transfer flushing into the drill string
— External flushing, holes or a slot are required in the side of the shank adapter.These line up between seals inside the front head or water box of the rock drill, when the shank is installed. Flushing medium is supplied directly to this device and is introduced into the drill string through the shank
— External flushing is considered superior to internal flushing, as greater volumes of flushing agent can be delivered with less risk of leakage and hammer damage from water
The shanks for hydraulic drills and some pneumatic drills have external or front head flushing. Hydraulic shanks generally have at least 5 to 14-spline configuration, Pneumatic shanks tend to have internal or through flushing and can generally be identified by their lugs or 4-spline configuration.

Company Information:

KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, prodcution, and application. The company has adopted advanced manafacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients' drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company's development team introduces innovative products each year - tools that are rigorously tested in the field and proven to perform beyound industry expectations.

The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.

MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
