Deep Exploration 139mm API Rc Drill Bit

Ask Lasest Price
Brand Name :	MIROC
Model Number :	RE 350 Hammers
Certification :	ISO9001:2015
Price :	Negotiation
Payment Terms :	L/C, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability :	20000PCS Per Month
Delivery Time :	10-25Days

Add to Cart

Product Details
Company Profile

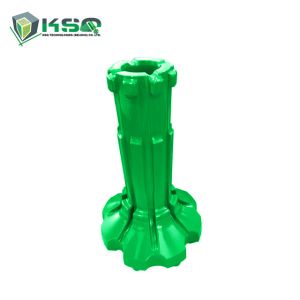

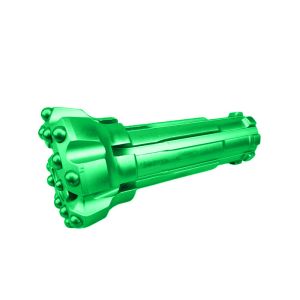

Deep Exploration 139mm API Rc Drill Bit

For Deep Exploration Drilling Reverse Circulation Rock Drill Tools 139mm RC Drill Bit

Product Description

Reverse circulation is achieved by blowing air down the annulus of the rod, the differential pressure creating air lift of the water and cuttings up the inner tube which is inside each rod. It reaches the deflector box at the top of the drill string then moves through a sample hose which is attached to the top of the cyclone.

The drill cuttings travel around the inside of the cyclone until they fall through an opening at the bottom and are collected in a sample bag. For any drill hole there will be a large number of sample bags, each one marked to record the location and drilling depth that the sample was obtained.

The collected series of sample bag cuttings are later taken for analysis to determine the mineral composition of the drill hole. The analysis results of each individual bag represents the mineral composition at a particular sample point in the drill hole. Geologists can then survey the drilled ground analysis and make decisions about the value of the overall mineral deposit.

Specification of Reverse Circulation Hammer and Bits:

P/N	Outside dia.(mm)	Hammer Length without bit(mm)	Drilling dia.	Sample Tube Dia. (mm)	Working Pressure (Mpa)	Top sub thread	Air consumption (M3/Min)	Weight (kg)
RC335	Φ90	991	95-110	30	0.7-2.1	T 2 3/8 Box	4.2-14	30
RC345	Φ105	1038	115-130	36	0.7-2.1	T 2 7/8 Box	4.5-20	41
RC350	Φ116	765	127-140	30	0.7-2.4	T 3 1/2 Box	6-20.6	48
RC355	Φ124	765	133-152	36	0.7-2.4	T 4 Box	6-21.5	60.5
RC365	Φ154	795	159-203	61	0.7-2.4	T 4 5/8 Box	7-25.5	89
RC385	Φ190	795	203-241	61	0.7-2.4	T 6 Box	10-30.5	167
RC3100	Φ230	814	241-311	76	0.7-2.4	T 6 5/8 Box	15-34	263
RC3120	Φ285	781	311-350	85	0.7-2.4	T 8 5/8 Box	20-37.8	423.5

Contact Person: Tina Yan

Mobile/Whatsapp/Wechat: +86-15035768372
Skype: myqueen323
