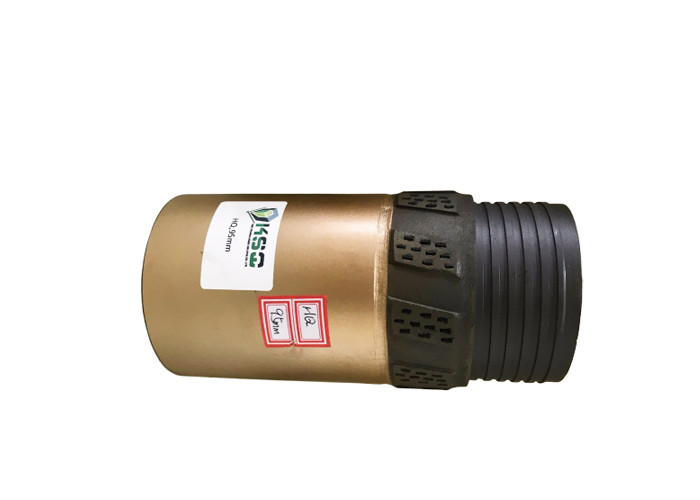

HQ Reaming shell ID95mm Reamer connect core drill bit for Hard Rock
Stratum
Reaming shells
Reaming Shells are used to maintain
the critical hole diameter and to stabilize the drilling system in
the hole during operation. The reaming shell is part of an overall
drilling system that includes a core bit, a core capture mechanism
(the core barrel assembly), the drill string (rods) and the drill
rig itself.
Surface set reaming shells Standard surface set reaming shell set
with specially selected diamonds and PDC pins. Well designed
waterways, reinforced with PDC pins, facilitate effective flushing
and contribute to long service life and good drilling economy for
both reaming shells and drill bits.
Reaming shells are avialable in different designs:
10" Double ring reaming shell available only for BQ, NQ, HQ (need
inner tube adjustment).
FH special heavy duty design for long life with extra
stabilization.
STD (Standard design).

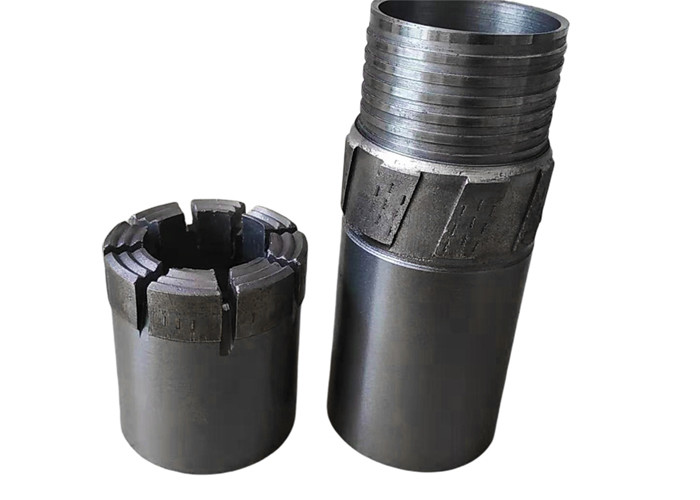

HQ Diamond Core Drill Bit and Reaming shell
| Product name | reamer shell |
| Material | Diamond and steel |
| Process | Forging |
| Size | HQ |
| Rock formation | Hard rocks |
| Packaging | Carton box |
Specifications:
| Specification Parameters |
| SIZE | Bit O.D. Hole Diameter | Bit O.D. Core Diameter | Reaming Shell O.D. |
| INCHES | MM | INCHES | MM | INCHES | MM |
| AQ | 1.870/1.880 | 47.50/47.75 | 1.057/1.067 | 26.85/27.10 | 1.885/1.895 | 47.88/48.13 |
| BQ | 2.340/2.350 | 59.44/59.69 | 1.428/1.438 | 36.27/36.53 | 2.355/2.365 | 59.82/60.07 |
| BQ3 | 2.340/2.350 | 59.44/59.69 | 1.315/1.325 | 33.40/33.65 | 2.355/2.365 | 59.82/60.07 |
| NQ | 2.960/2.970 | 75.18/75.44 | 1.870/1.880 | 47.50/47.75 | 2.975/2.985 | 75.57/75.82 |
| NQ2 | 2.960/2.970 | 75.18/75.44 | 1.990/2.000 | 50.65/50.80 | 2.975/2.985 | 75.57/75.82 |
| HQ | / | 95.76/95.38 | / | 63.63/63.38 | / | 99.24 |
| PQ | / | 122.3/121.8 | / | 85.09/84.84 | / | 121.61 |
We supply A-Gauge impregnated core bit:AQ, AW, AGM;
B-Gauge impregnated diamond core bit: BQ, BQ3, BTW, BX, LTK60;
N-gauge impregnated core bit:NQ, NQ2, NQ3, NMLC, TNW;
H-gauge impregnated core bit:HQ, HQ3, HMLC, HTW, HWF;
P-gauge impregnated core drilling bit:PQ, PQ3;
TT46 T2-46, TT56, T2-56, T2-66, T2-76, T2-86, T2-101;
T6-76 impregnated diamond core bit, T6-86, T6-101, T6-116, T6-131,
T6-146, etc.
